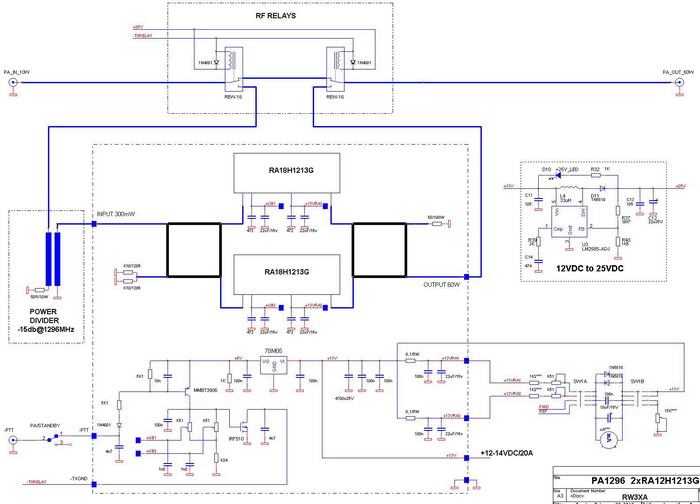

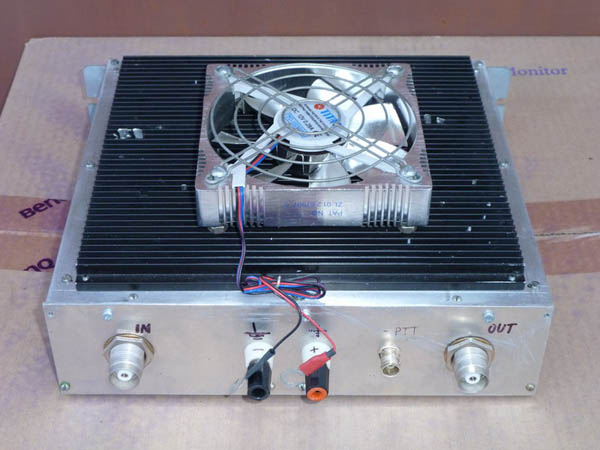

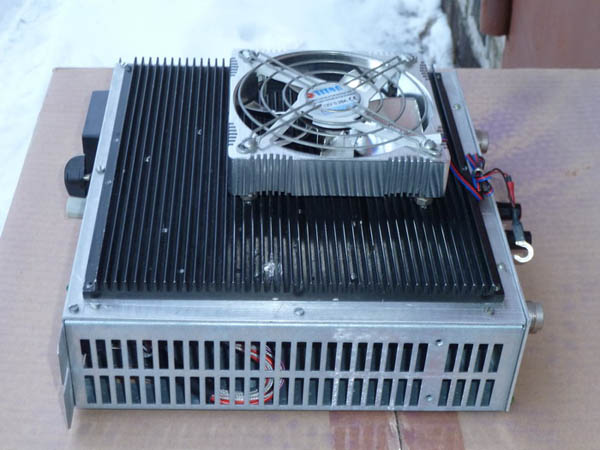

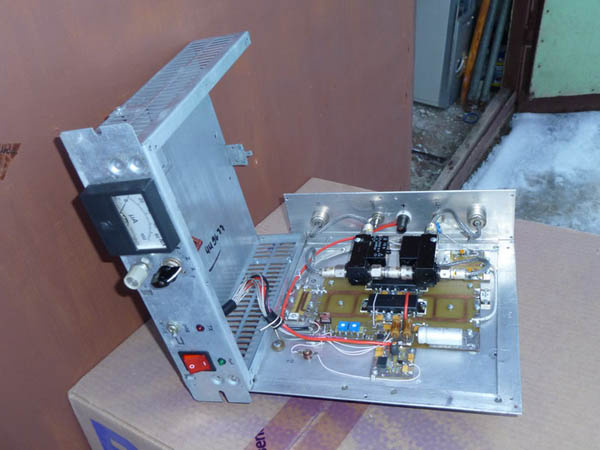

RA18H1213 modules - 2 pcs.
Input: 300 mW
Output: 60-70 W (13V-15V@20A)
Warning: image links have original (max) resolution sizes 3-4Mbyte and total page size=30MB !!!
All PCB (Sprint Layout format) packed to one archive file
|
|
|
|
